TOYOSILICONE-S2 Hose
For heat resistant and food
Model:
TSIS2
Features
Pressure-resistant hose with excellent heat resistance
Ideal for foods and beverages as there is minimal impact on odor and taste
Kink- and collapse- resistant hoses for improved transport efficiency
Useable for vacuum applications
Related Video
Bending Comparison
Vacuum Comparison
Product Features
Pressure-resistant hose with excellent heat resistance

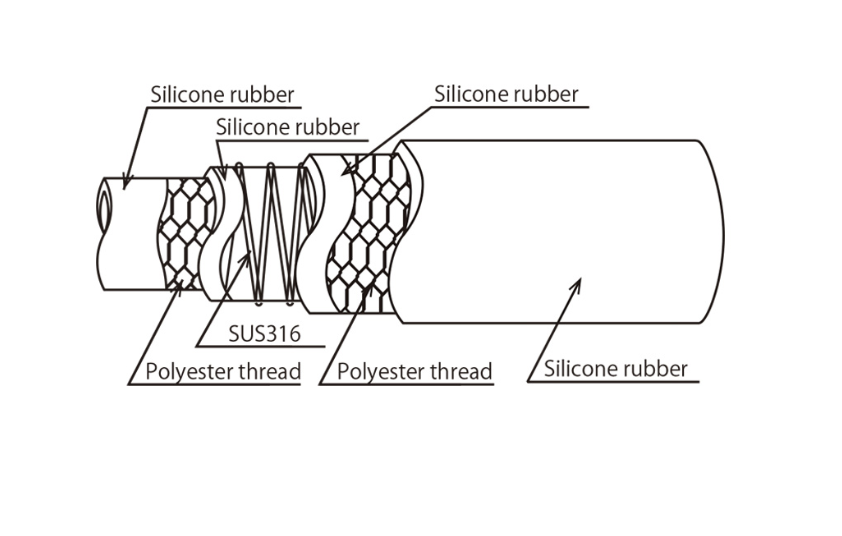

A combination of a specially braided double structure and metal coil reinforcement provides high shape retention and allows it to be used for both pressure feeding and vacuum (suction) transfer. These hoses support high-temperature fluids up to 150°C, and the inside of food grade hoses and floors can be washed (there are conditions regarding temperature and usage time, etc.). Can be used as piping as they remain flexible even at -30°C.
Ideal for foods and beverages as there is minimal impact on odor and taste
Non-toxic, safe and reliable for food products and beverage applications Because these hoses have minimal odor and little elution that affects the fluid, they are safe for food and beverages, etc. The SUS 316 reinforcement material means that there is minimal risk of rusting, for safe, worry-free, and sanitary performance.
Kink- and collapse-resistant hoses for improved transport efficiency
Softer than the TOYOSILICONE-S Hose and resistant to kinking and collapse, making it ideal for bent piping and driving sections such as in filling machines.
Compliant with various laws and regulations regarding safety and security
Compliant with Food Sanitation Act (Compliant with Notice of the Ministry of Health, Labour and Welfare No. 595, 2012) Compliant with FDA (US Food and Drug Administration) and registered with FDA DMF Type II No. 25486 Compliant with corrected RoHS 2 regulations
TOYOSILICONE-S2 Hose
For heat resistant and food
Application
For factory equipment (such as filling machines, cooling devices and heat-generating equipment)
Fluid
Water/Steam
Oils
Heat-resistant
Food & beverage
Chemicals & cosmetics
Powders
Function
Regulatory
Food Sanitation Act No. 380 compliant FDA registered RoHS 2 compliant
Specification
Main material
Reinforcing material
Inner diameter
Operating temp range
Other
Silicone rubber
Polyester thread/SUS316
19.5mm ~ 50.8mm
-30°C ~ 150°C
High water temp (under 100°C) / Steam (under 130°C for short time) / Oils (under 70°C)
Specifications table by size
Operating temperature range
-30°C ~ 150°C
Compatible Couplings
